DISHED ENDS

2000 ID X 70 THK Hemihead SA 516-70
2000 OD x 100 THK 2.1 Ellipsoidal SA 516-70 Read more
EXPANSION BELLOW

2484 OD X 2018 ID X 25 THK (SS 304L)
3192 OD X 2182 ID X 4 THK (SS 304)
1530 OD X 1050 ID X 40 THK (SS 316L) Read more
TORICONES

MAJOR ID = 4200,MINOR ID = 3600, MOC = SS 304LHT = 2050, THK = 25.0 2 TIER SEGMENTAL CONSTRUCTION ID = 16000, ID = 7000 THK = 440SA 516 GR. 485 N Read more
ROLLED SHELLS

CLAD SHELL SIZE : 1403 ID x 2200 Lg. x (52+3) THK MOC: CLAD SA 387 GR.11 CL-2 + SA 240 TP 321
BOILER DRUM SHELL (HOT ROLLED) 1520 ID X 100 THK (Lg. 2200) MOC = SA 516 GR.70 Read more
HOT FORMING

HEMISPHERICAL HEAD : 2000 OD x 70 THK (MOC : SA 516 Gr.70)
HEMISPHERICAL HEAD : 1475 OD x 125 THK (MOC : SA 516 Gr.70) Read more
PIPING & FABRICATION

JACKETS/ CASINGS
SEPARATOR TOPS FOR BOWL MILLS
HEADER RING 14" NB Sch. 60 SA 106 GR. B Read more
SPECIAL PRODUCTS

HELICAL COILS Range: Pipe size of 1“ NB to 6” NB Min. PCD = 300 Min. Bending Radius = 5 D
CIRCULAR / LINEAR EXPANSION BELLOWS (IN SEGMENTS) WITH LONGITUDINAL SEAMS Read more

DISHED ENDS
EXPANSION BELLOW
TORICONES
ROLLED SHELLS
HOT FORMING
PIPING & FABRICATION
SPECIAL PRODUCTS

Next

MANUFACTURING FACILITIES

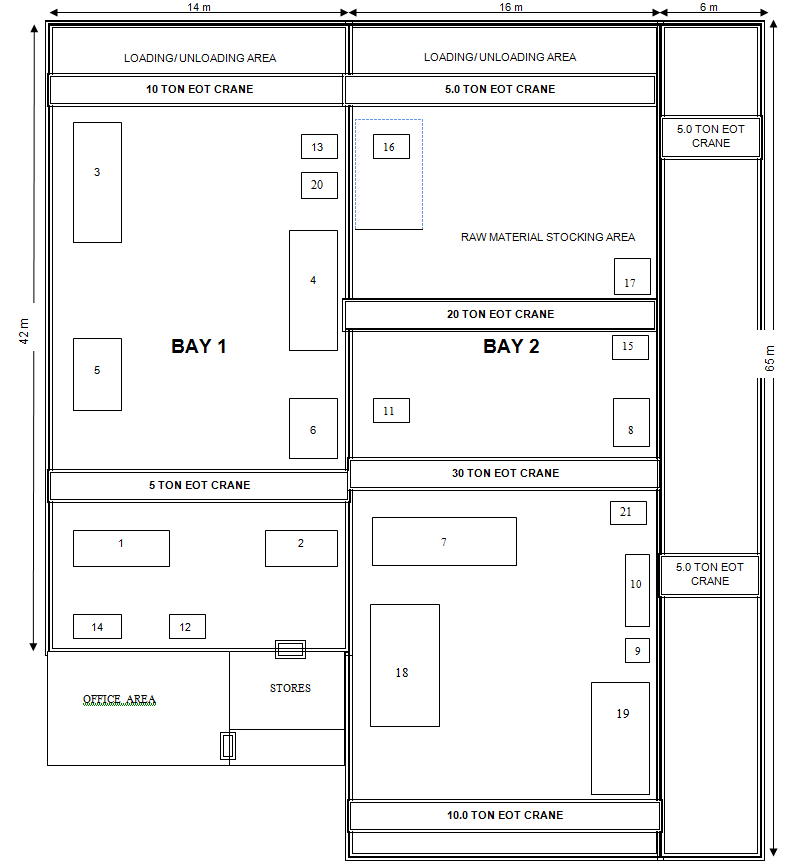

1. Press 500 MT 2 . Press 100 MT 3. Press 600 MT 4. Pipe Bending M/c 5. Pipe Bending M/c 6 . Press 1000 MT 7 . Plasma Cutting M/c 8. 11,12,13. Welding Rectifier (400 Amp.) 10,14 . Electric Distribution Panel (200 HP) 15, 16. Welding Rectifier (600 Amp.) 17 . Submerged Arc Welding M/c 18. Press 2000 MT 19. Plate Bending M/c (80thk) 20, 21 . Welding Rectifiers (600 Amp)

LIST OF MANUFACTURING FACILITIES
(Machines, Equipments, Material Handling, Heat Treatment & Power sources)

TOTAL AREA

UNIT – I – 40,000 Sq. Ft.

(Covered area 25,000 Sq. Ft.)

UNIT – II – 1, 00,000 Sq. Ft.

(Covered area 20,000 Sq. Ft.)

FOR METAL FORMING
LIST OF HYDRAULIC PRESSES
UNIT – I

SR.	CAPACITY (TONNES)	SPAN (MM)	STROKE (MM)	RAM DIA. (MM)	DAYLIGHT (MM)	Max. Thk. Job can be taken
1	100	2500	400	180	500	12mm
2	500	5000	600	420	700	45mm
3	600	5500	800	460	900	56mm
4	1000	5900	1200	550	1385	100mm
5	1200	6000	1200	630	1385	120mm
6	2000	5000	1500	800	1680	160mm

UNIT – I I

SR.	CAPACITY (TONNES)	SPAN (MM)	STROKE (MM)	RAM DIA. (MM)	DAYLIGHT (MM)	Max. Thk. Job can be taken
1	1000	5900	1200	550	1385	100mm
2	1200	6000	1200	630	1385	120mm

3

PLATE BENDING MACHINE (ROLLING)

HYDRAULIC - 3 ROLLERS

MAX. WIDTH 3000mm x Thk. 100mm

FOR MATERIAL HANDLING
LIST OF EOT CRANES

UNIT - I			UNIT - II
SR.	SWL (TONNES)	QTY.	SR.	SWL (TONNES)	QTY.
1	5	11 Nos.	1	15	1 No.
2	10	3 Nos.	2	25	1 No.
3	20	2 Nos.
4	30	1 No.

FOR FABRICATION WORK
UNIT – I

SR.	MACHINE	MAKE	CAPACITY	QTY.
1	WELDING MACHINE for SMAW	MEMCO	600 Amps.	4 Nos.
2	WELDING MACHINE for SMAW	MEMCO	400 Amps.	6 Nos.
3	WELDING MACHINE for SAW	MEMCO	1200 Amps.	1 No.
4	WELDING MACHINE for GTAW	ARCRAFT	400 Amps.	1 No.
5	WELDING MACHINE for MIG	PANASONIC	400 Amps.	2 Nos.
6	AIR PLASMA CUTTING M/C	ADVANCE	UPTO 100 THK.	1 No.

UNIT – II

SR.	MACHINE	MAKE	CAPACITY	QTY.
1	WELDING MACHINE for SMAW	MEMCO	600 Amps.	2 Nos.
2	WELDING MACHINE for SMAW	PANASONIC	600 Amps.	2 Nos.
3	AIR PLASMA CUTTING M/C	ARCRAFT	UPTO 60 THK.	1 No.

FOR HEAT TREATMENT
UNIT - I

SR.	DESCRIPTION	TYPE	SIZE (In Mtrs.)	CAPACITY	QTY.
1	HEATING FURNACE (PERMANENT)	OIL FIRED	4.5 x 4.5 x 1.8(HT)	Max. 25 Tones Wt.	1 No.
2	MODULAR FURNACE (PORTABLE)	OIL FIRED	2.0 x 2.0 x 1.2(HT)	Max. 10 Tones Wt.	1 No.
3	HEATING FURNACE	ELECTRICAL	0.75 x 0.6 x 0.4(HT)	Max. 200 Kgs. Wt.	1 No.

POWER SUPPLY :
UNIT-I - Connected Load of 360 KVA@22 kV High Tension supply (Utility Provider: MSEDCL)+ BACKUP DG Set 250KVA
UNIT-II - Connected Load of 375KVA@22 kV High Tension supply (Utility Provider: MSEDCL)
